In a diagnostic maintenance program the execution of measurements was always a difficult and timely procedure. No more. WearDC, is the diagnostic maintenance system that can be used by anyone.
How WearDC works
Open the WearDC One application and select the path to follow. You will be immediately informed about the appropriate sensors that will be required.
This avoids the transfer of unnecessary weight and volume on the field.
WearDC supports optical inspection checklists, measurements with sensors and thermography.

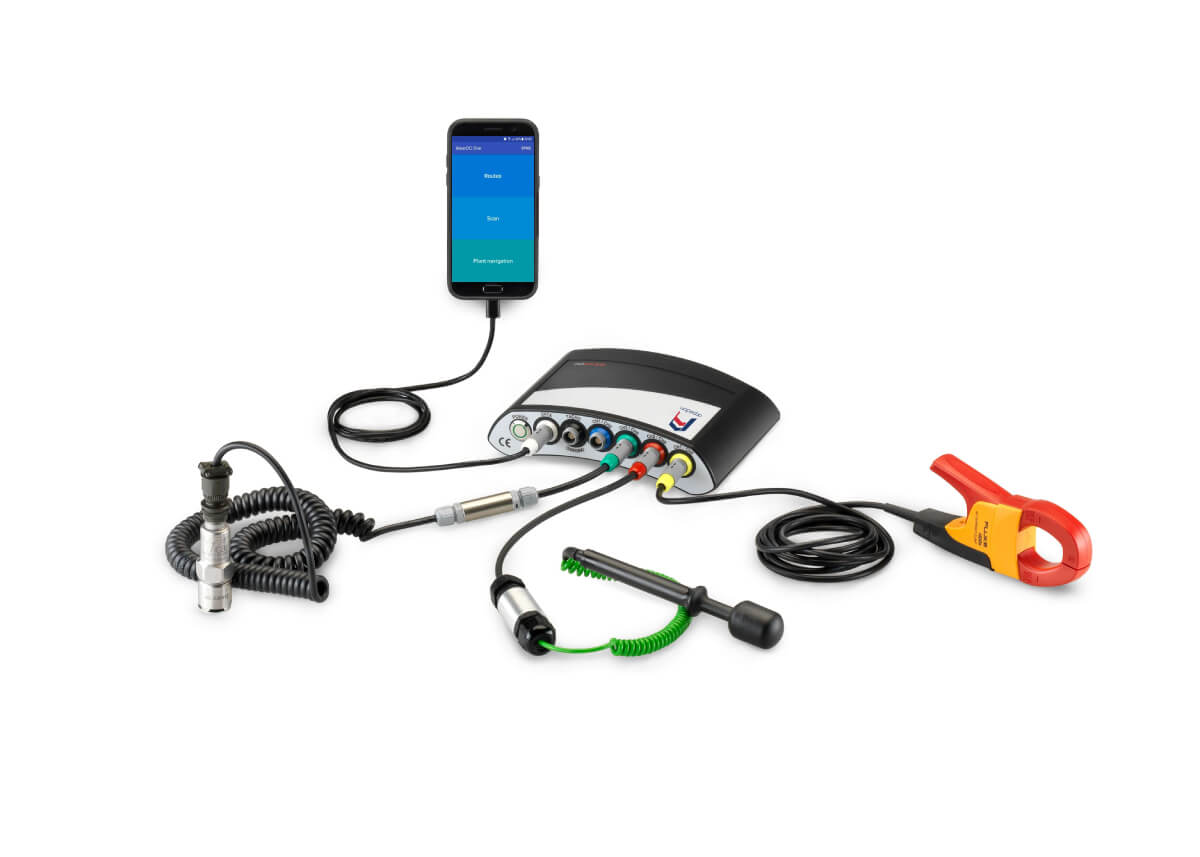

Multiple sensors, one device
Experience led us to create a complete portable diagnostic maintenance system.
Perform measurements with vibration, ultrasound, electric current, pressure, temperature, speed sensors and any 0–10V/4–20mA sensor. Instructions with photos and drawings on your mobile screen help you collect data more easily and validly than ever before.
In the same route perform optical inspections and collect thermal images.
All the measurements are automatically transferred to the extremely easy to use Mechbase software.

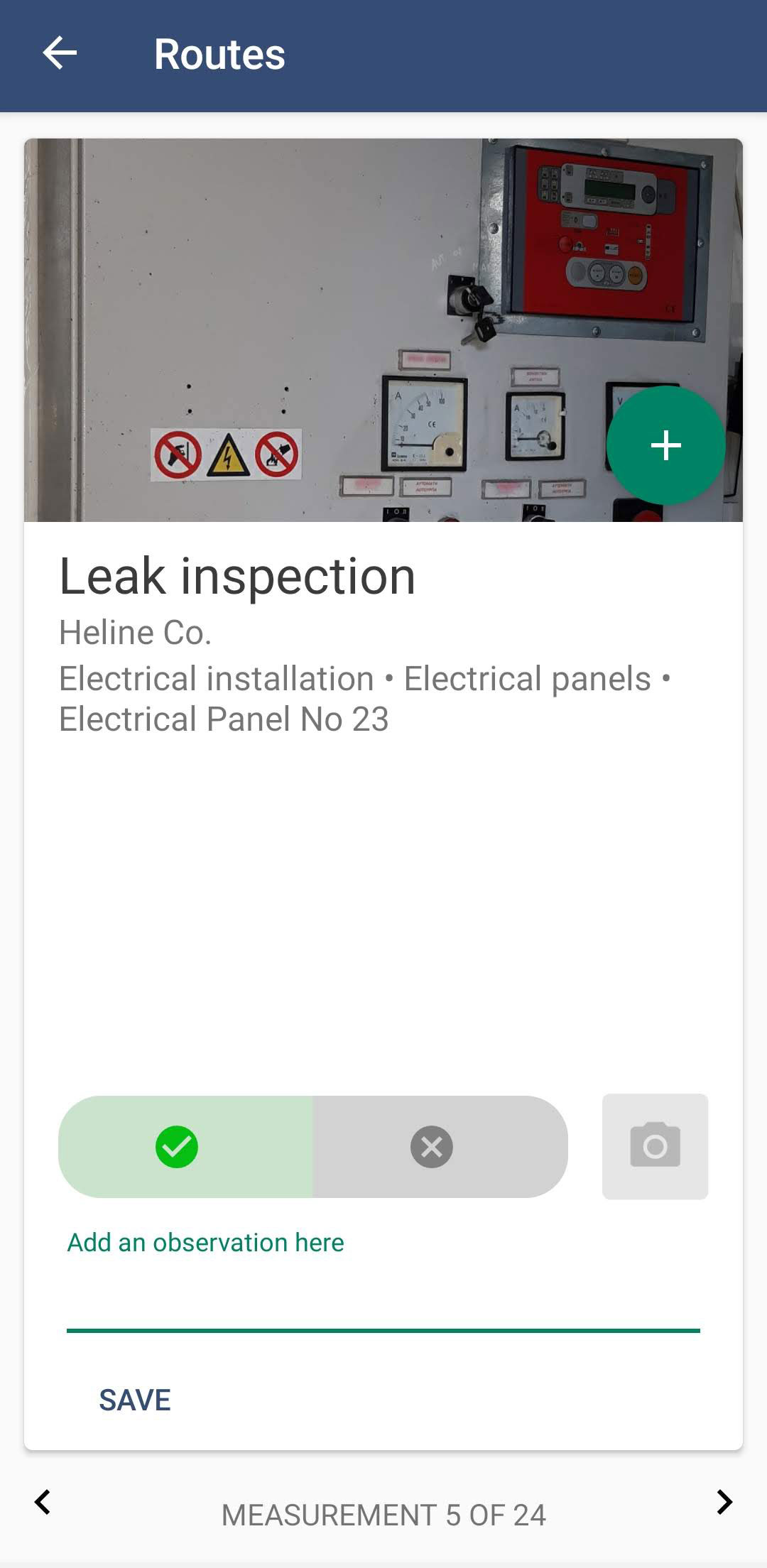

You no longer need to wander the field with dossiers and pencils. With WearDC One application you perform visual inspections from your Android device with new capabilities such as reference pictures and comments. Your reports will be clearer than ever before.
Measure quickly and with ease
The device supports QR codes on measurement points for quick access. Scan the QR code on the asset that caught your interest and access its earlier measurements. See all the information and measure again.
Thermographs with the FLIR mark
Use FLIR cameras on your routes. The small FLIR ONE is supported as well as bigger compatible cameras.
Check rotating and stationary equipment and keep the images together with the rest of the measurements in the Mechbase software.
WearDC transforms maintenance.
Power production, industry, oil & gas, maritime, facility management, non-profit organizations all benefit from WearDC for better observation of their equipment.
|Sampling rate||300 kHz (max)|
|Channels||8 single ended, 16bit with multisampling capabilities|
|Sensor supply||+22V, +12V, +5V|
|Measurement range||±10V (max)|
|Interface||USB, connection with Android 10+ devices|
|Dimensions||150 x 200 x 54mm (L x W x H)|
|Casing||ABS (UL 94 HB), IP54|
|Operating conditions||Temperature: 0°C to 50°C or 32°F to 122°F
Humidity: 20 – 85% (non-condensing)
Drop test: From 1.5 m on concrete (with protective cover)
|Power||Battery: 3400 mAh Lithium Ion/3.6V
Duration: 8 hours (typical)
Charger: 5V, 1A
Standard IEPE (IEEE 1451.4) industrial accelerometers
Ultraprobes®/UE Systems Inc. utrasound equipment
Sensors 0-10V (revolution speed, static and dynamic pressure temperature, infrared radiation, humidity, voltage/current, force, torque, strain)
|Compliance||Regulatory compliance: EU Directives, RoHS, EN 61010-1:2010, EN61010-2-032:210
EN61010-2-033:2012, EN61010-031:2015, EN61326-1:2013 EN61326-2-2:2013, EN61326-2-3:2013
Classification & hierarchy standards: NACE Rev.2, ISO13373-2:2016 ISO14224:2006, MIMOSA™
Compatibility with CMMS software: AIMMS/Atlantis, Coswin 8i®/Siveco Group
